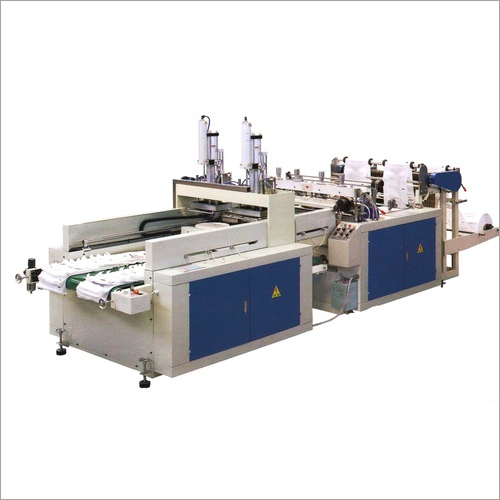

Plastic bag Making Machine
This machine produce the printing or blank bags. It is made of HDPE & LDPE roll film.
It adopts PLC control, double servo motor fixed length and the liquid crystal touch screen actual disply to finish the feeding, sealing, cutting, punching holes and transporting only in one process, It is of high degree of automation and good economic result.
Main Technical Variables
|Max. bag-making Width||320mm X 2|
|Max. bag-making Length||320-650mm|
|Bag-making Speed||140-200 pcs/min. X 2|
|Air pressure||5 Kg/CM2|
|Total Power||9 Kw|
|Weight of Machine||1600 Kg|
|Overall Dimensions ( L X W X H )||6000 X 1600 X 1600mm|
