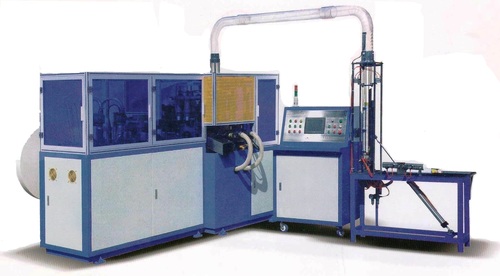

Paper Cup Forming Machine

Paper Cup Forming Machine
Paper Cup Forming Machine
Product Code : DR-12H
Brand Name : DRTP
Product Description

 Paper Cup Forming Machine

USE:

This machine runs steady and fast, finishing cups with good quality, reducing the waste percentage. It is specially good for making tall paper cups. It is the best choice for making paper cups.



FEATURES:

DR-12H High Speed Paper Cup Forming Machine is a high speed automatic machine with multi-working station. It produces of automatic paper feeding, sealing, silicon oil lubrication, bottom punching, heating, knurling, curling and cup discharge. This machine has adopted new technology, imported hot blowing equipment and imported PLC system. It has good feature of precise equipment and it is the first choice for the paper cup manufacturer.



Main Technical Variables:

 ModelDR-12H
 Cup Size6~12 oz (outside diameter of a cup 60~110 mm outside diameter of bottom 50~70mm height of cup 50~138mm depth of bottom 5~10 mm)
 Rated Speed65-80 pcs/min
 Main Motor Power2.2 Kw
 Electro Thermal Power13.2 Kw
 Air Source0.6m3/min; 0.6MPa customer-owned
 Supply Base Paper190~350g / (Single or double PE coating paper)
 Weight3 Ton
 Main Size2700mm X 1700mm X 1800mm
 Electrical Box Size850mm X 700mm X 1400mm
 Paper Cup Collector Size1150mm X 650mm X 2000mm
 RemarkThe paper thickness error margin is 03mm for the same set of mould
