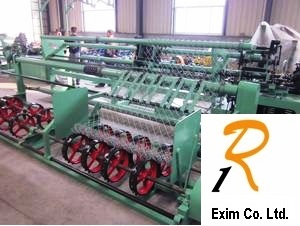

Chain Link Fencing Machine

Chain Link Fencing Machine
Chain Link Fencing Machine
Product Code : DR-CLFM
Brand Name : DR
Product Description

Technical Description:

a. Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sized. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.

b. The chain link is automatically wound to form rolls when the desired length is manufactured.

c. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

d. One side or both sides of the end of net hole is twisted or with burr in edge.

e. Use compacting machine to make it into rolls.

Product Introduction:

1. Width scope of weaving: 2--4m; suitable for all kinds of Electro-galvanized, hot-dipped galvanized diamond shape mesh

2. Mesh scope of weaving: 30-100mm(According to the requirements of customers, can provide 2 different types of knife molds)

3. Wire scope of weaving: 2-4 mm

4. The output per minute: for example: if the mesh is 50*50mm,width 2000mm, the output will be 1M2/min

5. The machine is controlled by PLC automatic controller

6. Power consumption: 9KW

7. Weight of equipment: 4200kg

8. Outside size: main machine:6700*1430*1800mm 5100*1700*1250mm

Electric System:

1) Japan Mitsubishi PLC

2) The serve motor 5.5kW

3) Low-voltage electrical from Schneider

4) Electric & Machinery from Taiwan Teco Electric

10. Suitable wire to the machine: high-quality low-carbon steel wire, Galvanized Steel Wire, Stainless steel wire, Aluminum alloy wire, Aluminum-clad Steel Wire

11. Chain link Fencing is extensively used as fences for playground and gardens, super highway, railway, airport, port, residence, etc.

 Also We can make machine as per your fencing size and req.
